Cargo TrailersModel: QT-CATDA
Cattle Trailer Double Axle
R 85 000
incl. VAT, ex-worksIn stock — ready for dispatch
Heavy-duty double-axle cattle trailer for transporting larger livestock loads safely.
Key features
- 2500kg GVM
- Hydraulic ramp
- Double-axle stability
Specifications
1. GENERAL
- Type
- Cattle
- GVM
- 2300kg
2. CHASSIS/FRAME
- Chassis Material
- 76mm x 38mm x 5mm Open Channel
- A-Frame Material
- 76mm x 38mm x 5mm Open Channel
- Construction
- Ladder frame
- Corrosion Resistance
- Painted 2K Duco
3. BODY/DECK
- Size
- 3.0m x 1.8m
- Floor Material
- 2.0mm Thick Lipped Channel, with Drain Strips and M12 Removable Grid, Wheels on the Outside of the Trailer
- Headboard
- 1.8m Headboard, First 300mm Closed with Plate – Main Frame Built from 50mm Square Tube
- Side Rails/Panels
- 1.8m Rails, First 300mm Closed with Plate – Main Frame Built from 50mm Square Tube
- Tailgate/Rear Gate
- Swing/Sliding Gate at the Back and Middle, Both to Hang from Above on Bearings. 1 x Sliding Gate on the Right-Hand Side, to Hang from Above on Bearings
- Additional Support
- 3 x Additional Supports in the Length on the Top

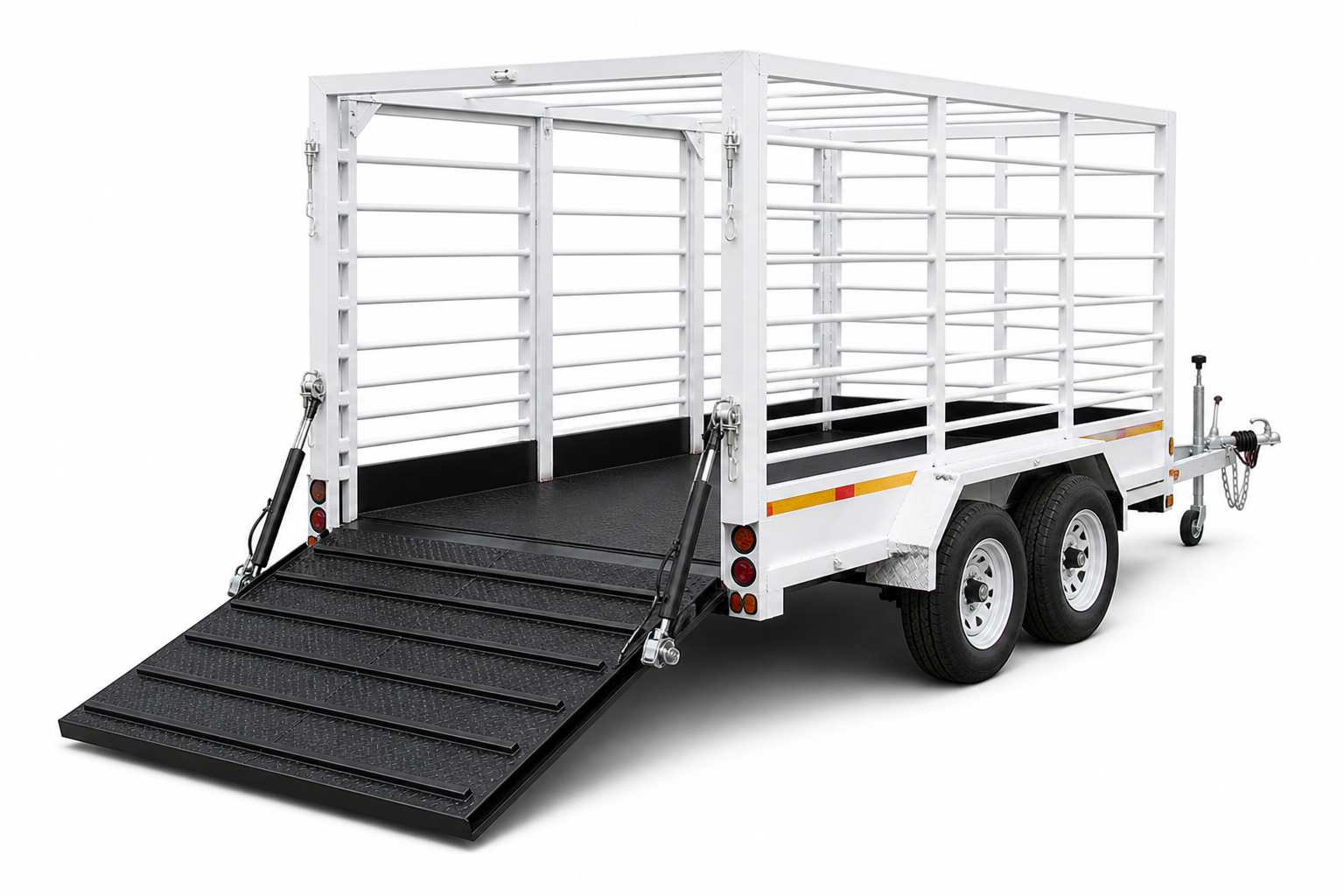

- Ramps
- 1 x Ramp on the Right-Hand Side – Can Also be Used at the Back
- Anchor Points
- None

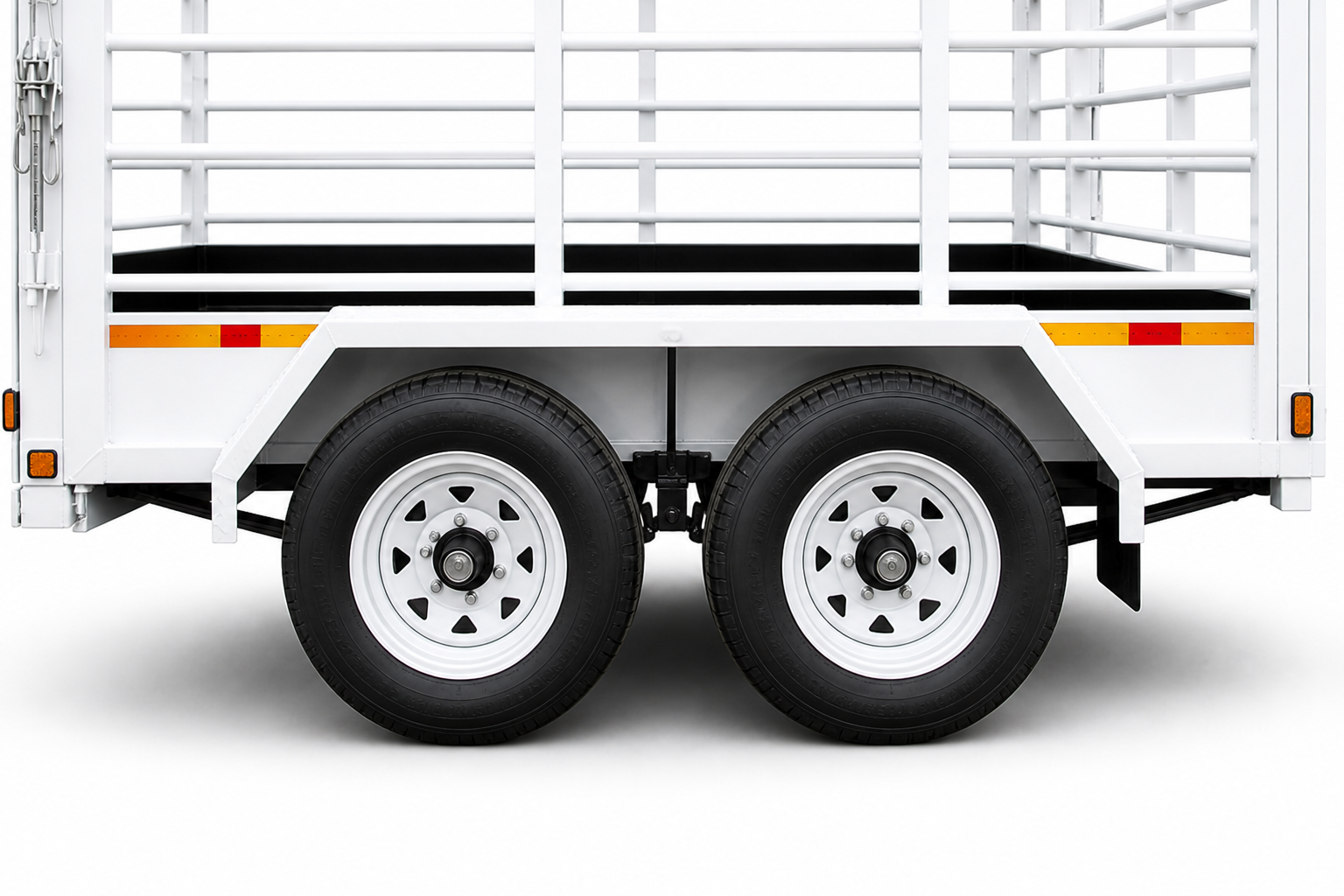

4. AXLES/WHEELS
- Number of Axles
- 2
- Axle Type
- 1020mm, 8-Blade HD Leaf Springs
- Axle Capacity
- 1600kg each
- Wheels
- 14"
- Spare Wheel
- 14" on the A-Frame
- Jockey Wheel
- 60mm in Front
5. COUPLER/BRAKES
- Coupler Capacity
- 2700kg
- Brakes
- Yes
6. LIGHTING
- Type
- 12V LED Lights
7. AVAILABLE UPGRADES
- Sides
- Mesh sides available on request
- Axles
- Upgrades available on request
- Colour
- Available in White, Black, Green or Brown
