Cargo TrailersModel: QT-CAT1500

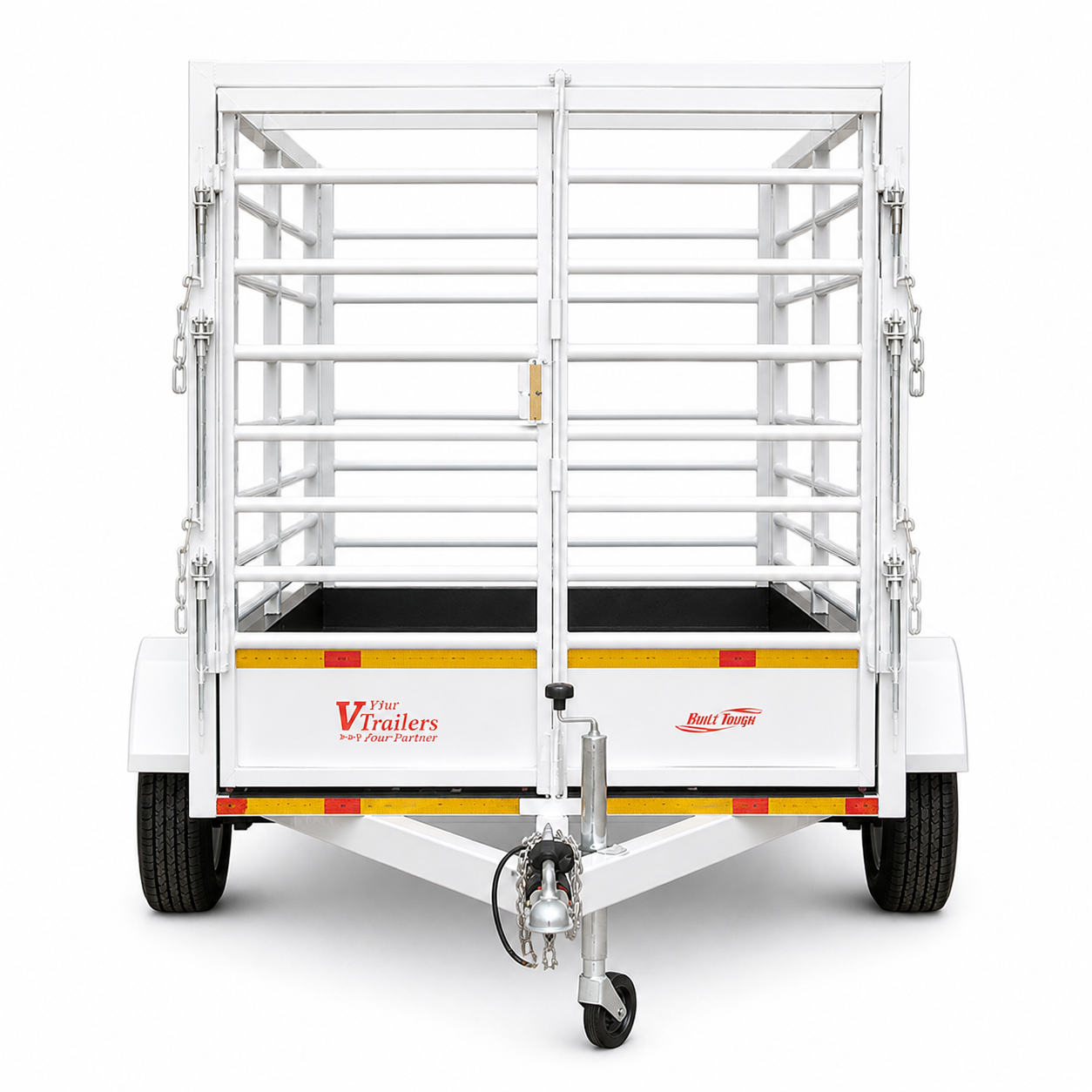

Cattle Trailer 1500kg
R 65 000
incl. VAT, ex-worksIn stock — ready for dispatch
Single-axle cattle trailer with rear loading ramp, vented sides, and rubber matting.
Key features
- Rear loading ramp
- Vented sides
- Rubber matted floor
Specifications
1. GENERAL
- Type
- Cattle
- GVM
- 1500kg
2. CHASSIS/FRAME
- Chassis Material
- 76mm x 38mm x 5mm Open Channel
- A-Frame Material
- 76mm x 38mm x 5mm Open Channel
- Construction
- Ladder frame
- Corrosion Resistance
- Painted 2K Duco
3. BODY/DECK
- Size
- 3.0m x 1.7m
- Floor Material
- 2.0mm Thick Lipped Channel with Drain Strips and Removable Grid
- Headboard
- 1.7m Headboard, First 300mm Closed with Plate – Built from 50mm Square Tube
- Side Rails/Panels
- 1.7m Rails, First 300mm Closed with Plate – Built from 50mm Square Tube
- Tailgate/Rear Gate
- Swing Gate at the Back – Hinged from Above on Bearings
- Additional Support
- 2 x Additional Supports in the Length on the Top
- Ramps
- 1 x Ramp at the Rear
- Anchor Points
- None
4. AXLES/WHEELS
- Number of Axles
- 1
- Axle Type
- 1020mm, 8-Blade HD Leaf Springs
- Axle Capacity
- 1600kg
- Wheels
- 14"
- Spare Wheel
- 14" on the A-Frame
- Jockey Wheel
- 60mm in Front
5. COUPLER/BRAKES
- Coupler Capacity
- 2000kg
- Brakes
- Yes
6. LIGHTING
- Type
- 12V LED Lights
7. AVAILABLE UPGRADES
- Sides
- Mesh sides available on request
- Axles
- Double-axle upgrade available on request
- Colour
- Available in White, Black, Green or Brown
